Rolli Cradle

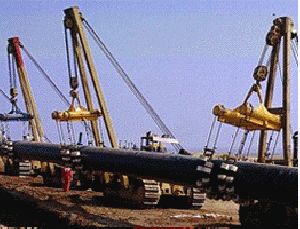

The line of Rolli Cradles are engineered and designed to assist in both line travel operations, and a dependable, quick and efficient means of the lowering of pipeline.



Ability to handle 6" to 60" pipe



Standard Features:

  • The cradle design provides quick disassembly for transit and storage

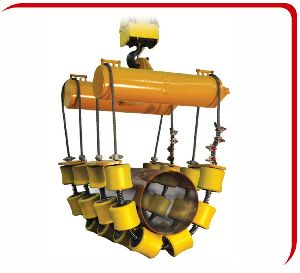

  • Multiple PVDF  / polyurethane rollers spaced to support the pipe and distribute load evenly which prevents an "egging" problem
  • Rollers ride easily over weld seams and do not hang up over the seams.
  • Easily used as a lowering-in or lifting out cradle.
  • Various cradle assemblies for pipe sizes 6" (168 mm) through 60" (1524 mm) are available along with replaceable rollers.
  • Safe handling can be easily performed because of ample space.

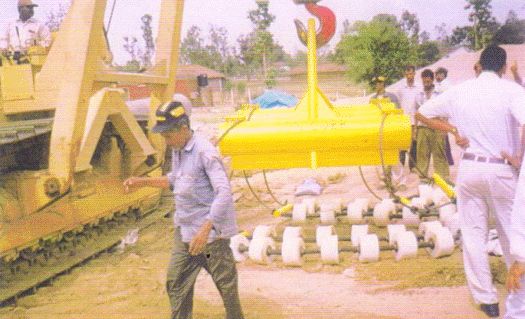

Load Testing : Load testing of the Rolli cradles is being carried out in the lab of the agency approved by Govt. of India and also live by cranes. Testing is being done at twice the load carrying capacity of the equipment.



Cradle: Special cradle made to carry load from 6 to 50 tons to be used on different sizes of pipelines.

Rollers: Special rollers are made to protect PE coated or any other type of coating during lowering which absorb the heat created by friction as well as protection has been given to rollers to protect it from dust not to enter inside the bearings.

Bearings: The rollers are fitted with the Heavy duty bearings to carry the weight of the pipeline.

Pins: High carbon steel is being used in the pins to stand with the thrust of pipeline during lowering.


Specifications

Material Metal
Usage Construction Use
Load Capacity 100-200Kg
Features Comfortable, Easy To Use
Finshing Non Polished
Folding Style Foldable


.

Attributes
  • The cradle design provides quick disassembly for transit and storage
  • Multiple Teflon / polyurethane rollers spaced to support the pipe evenly and to prevent an "egging" problem
Size
  • Various cradle assemblies for pipe sizes 6" (168 mm) through 60" (1524 mm) are available along with replaceable rollers
Product Component
  • Cradle :
    • Special cradle made to carry load from 6 to 50 tons to be used on different sizes of pipelines
  • Rollers :
    • With special rollers that are made to protect PE coating or any other type of coating
    • With dust protection
  • Bearings :
    • The rollers are fitted with the heavy duty bearings to carry the weight of the pipeline
  • Pins :
    • High carbon steel is being used in the pins to stand with the thrust of pipeline during lowering
Capacity (to handle 6' to 60" Pipe)
  • Protects pipe and saves manpower
  • Excellent quality for pipeline
  • Anti-friction bearing
  • High-load polyurethane rollers






Graphical image

Graphical image

Technical Specifications

Size Weight Total Number of Rollers Number of Cable Strands Wire Rope Diameter Maximum Recommended Working Load
Inch mm lbs./kgs. lbs.(kgs.)
2-6” 51-152 110/50 10 2 12mm. 8800(4000)
6-12” 152-305 300/136 28 4 19mm. 15400(7000)
12-24” 305-610 750/341 36 4 20mm. 33000(15000)
24-36” 610-914 1419/645 36 4 22mm. 55000(25000)
36-48” 914-1219 2145/975 36 4 28mm. 77000(35000)
48-60” 1219-1524 3685/1675 36 4 35mm. 99000(45000)

Graph Image

Graph Image


  • Rolli Cradles 01

  • Rolli Cradles 02

  • Rolli Cradles 03

  • Rolli Cradles 04

  • Rolli Cradles 05

  • Rolli Cradles 06

  • Rolli Cradles 07

  • Rolli Cradles 08

  • Rolli Cradles 09

  • Rolli Cradle 10

  • Rolli Cradle 11

  • Rolli Cradle 12

  • Rolli Cradle 13

  • Rolli Cradle 14
